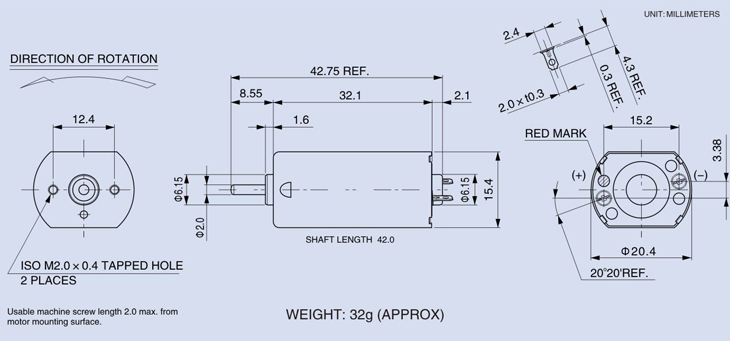

| Name：TFF-180PH |
| Time：14-05-13 |
| Click： |
| 典型应用 视听设备：视频磁带播放机 家用电器：电动剃须刀、牙刷 |
Typical Applications Audio and Visual Equipments: VCR Househole Appliances: Electric Shaver/Tooth Brush |
|
型号 MODEL |
电压 VOLTAGE |
空载NO -LOAD | 负载 AT MAXIMUM EFFICIENCY | 堵转STALL | ||||||||
| 转速 SPEED |
电流 CURRENT |
转速 SPEED |
电流 CURRENT |
转矩 TORQUE |
功率 OUTPUT |
转矩 TORQUE |
电流 CURRENT |
|||||
| 使用范围OPERATING RANGE | 额定值NOMINAL | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | |
| TFF-180PH-2852 | DC 1-3V | DC 2.4V | 8100 | 0.15 | 6850 | 0.82 | 1.82 | 18.6 | 1.30 | 11.8 | 120 | 4.50 |
| TFF-180PH-4022 | DC 1.0-1.5V | DC 1.2V | 9400 | 0.40 | 7830 | 1.99 | 1.76 | 17.9 | 1.44 | 10.5 | 107 | 9.90 |
| TFF-180PH-10320 | DC 6-12V | DC 12V | 6500 | 0.028 | 5280 | 0.12 | 1.51 | 15.4 | 0.84 | 8.04 | 82 | 0.52 |
| TFF-180PH-2657 | DC 1-3V | DC 2.4V | 7700 | 0.13 | 6500 | 0.70 | 1.56 | 15.9 | 1.06 | 10.0 | 102 | 3.80 |
| TFF-180PH-14210 | DC 3.7-7.2V | DC 4.5V | 3700 | 0.025 | 3090 | 0.13 | 1.02 | 10.4 | 0.33 | 6.17 | 63 | 0.63 |
| TFF-180PH-4026 | DC 1.0-1.5V | DC 1.2V | 8300 | 0.30 | 6990 | 1.60 | 1.64 | 16.7 | 1.20 | 10.4 | 106 | 8.55 |
