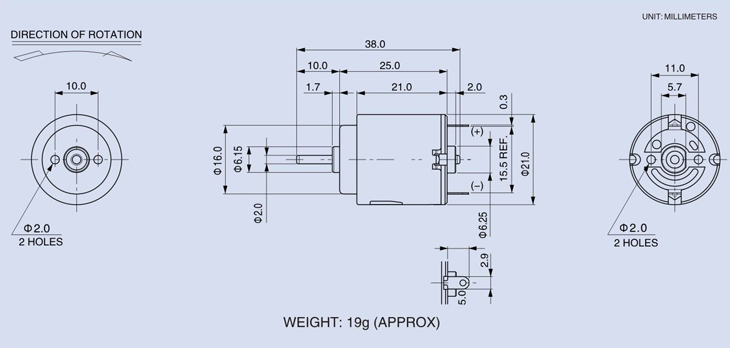

| Name：TRE-140RA |
| Time：14-05-13 |
| Click： |
|
典型应用 |
Typical Applications Toys and Models: Motorized Toy Motorized Plastic Model |
|
型号 MODEL |
电压 VOLTAGE |
空载NO- LOAD | 负载 AT MAXIMUM EFFICIENCY | 堵转STALL | ||||||||
| 转速 SPEED |
电流 CURRENT |
转速 SPEED |
电流 CURRENT |
转矩 TORQUE |
功率 OUTPUT |
转矩 TORQUE |
电流 CURRENT |
|||||
| 使用范围OPERATING RANGE | 额定值NOMINAL | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | |
| JRE-140RA-2270 | DC 1.5-3.0V | DC 1.5V | 8100 | 0.21 | 6150 | 0.66 | 0.66 | 6.7 | 0.42 | 2.74 | 28 | 2.10 |
| DC 3V | 14200 | 0.25 | 11320 | 0.98 | 1.04 | 10.6 | 1.24 | 5.15 | 53 | 3.87 | ||
| JRE-140RA-18100 | DC 1.5-3.0V | DC 1.5V | 5700 | 0.13 | 4230 | 0.37 | 0.48 | 4.9 | 0.21 | 1.86 | 19 | 1.07 |
| DC 3V | 10900 | 0.16 | 8520 | 0.57 | 0.79 | 8.1 | 0.71 | 3.63 | 37 | 2.04 | ||
| JRE-140RA-12240 | DC 3.0-6.0V | DC 3V | 4800 | 0.050 | 3530 | 0.14 | 0.44 | 4.5 | 0.16 | 1.67 | 17 | 0.39 |
